Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
Loosen the screws.

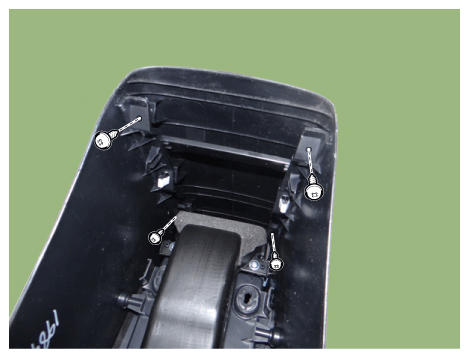

Fig 1: Loosening Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear console cover (A) by using a remover.

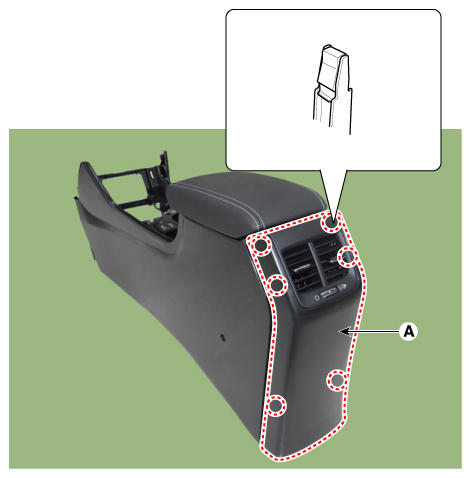

Fig 2: Removing Rear Console Cover By Using Remover
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Information

Make sure the connector is connected properly.
Replace any damaged clips.
