Repair Procedures: Replacement

Remove the front seat belt upper anchor.
(Refer to Front Seat Belt - "FRONT SEAT BELT RETRACTOR ")
After loosening the mounting bolts, remove the height adjuster (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5kgf.m, 28.9 - 39.8 lb.ft)

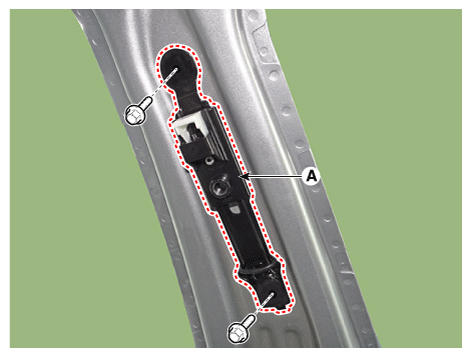

Fig 1: Locating Height Adjuster With Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Replace any damaged clips.
