Components And Components Location: Components

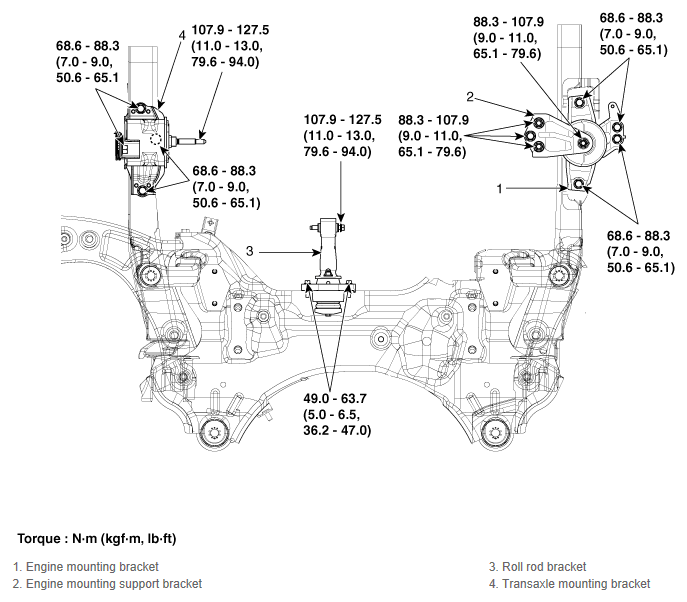

Fig 1: Engine Mounting Components With Torque Specification
G12290242Courtesy of KIA MOTORS AMERICA, INC.
