Standard Flow Of Diagnostic Troubleshooting

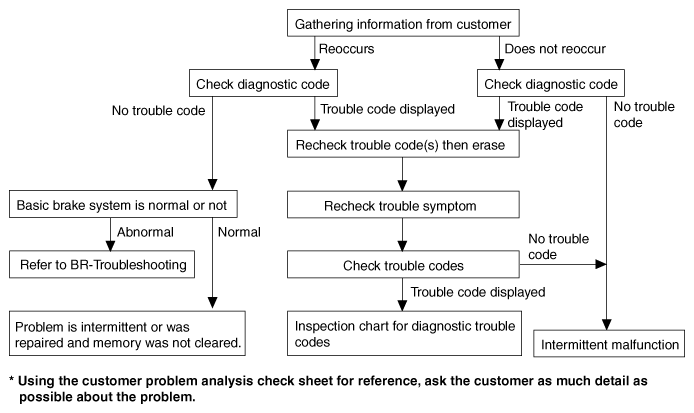

Fig 1: Standard Flow Chart Of Diagnostic Troubleshooting
G12163872Courtesy of KIA MOTORS AMERICA, INC.
