Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Pre-tighten the bracket fixing bolt (A) in dash panel.

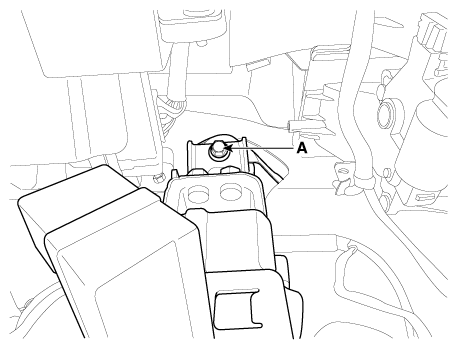

Fig 1: Locating Bracket Fixing Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install the brake booster and brake pedal member fixing nuts (A) securely.
Tightening Torque:

16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb.ft)

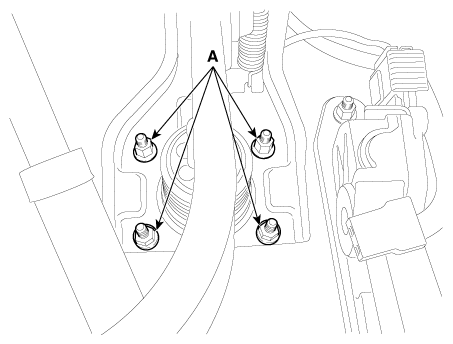

Fig 2: Locating Brake Booster And Brake Pedal Member Fixing Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the bolt (A) securely in dash panel.
Tightening Torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Fig 3: Locating Dash Panel Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Install the snap pin (A) and clevis pin (B).

Fig 4: Locating Snap Pin And Clevis Pin
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Before installing the pin, apply the grease to the clevis pin.
- Use a new snap pin whenever installing.
Install the stop lamp switch securely.
Connect the stop lamp switch connector (A).

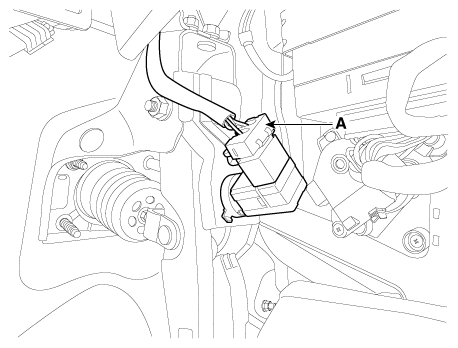

Fig 5: Locating Stop Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Adjust the brake pedal height and free play.
Check the brake pedal operation after installing the brake pedal.
Install the shower duct (A).

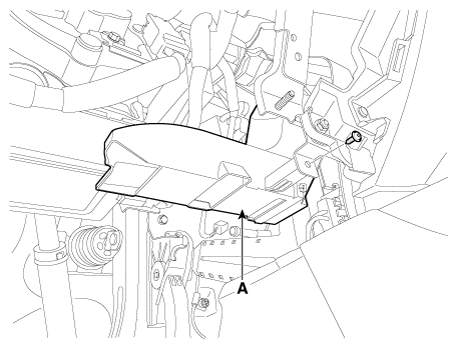

Fig 6: Locating Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.
Install the Crash Pad Lower Panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Reconnect the battery negative cable.
