Repair Procedures: Inspection: Multi-Fuse

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Multi-Fuse is for optimizing the Engine Room Package.

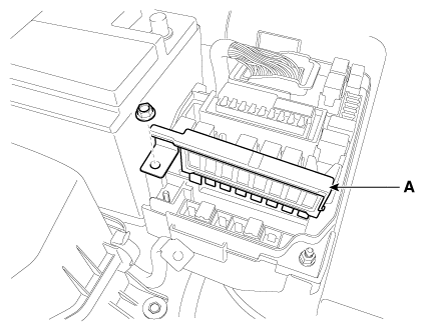

Fig 1: Locating Multi-Fuse

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Multi-Fuse has to replace entirely when there is damage to only one Fuse.
When replace the Multi-Fuse, Refer to the RELAY BOX (ENGINE COMPARTMENT) diagram exactly.
Use the Multi-Fuse capacities for each circuit correctly.
