ICM Relay Box
WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

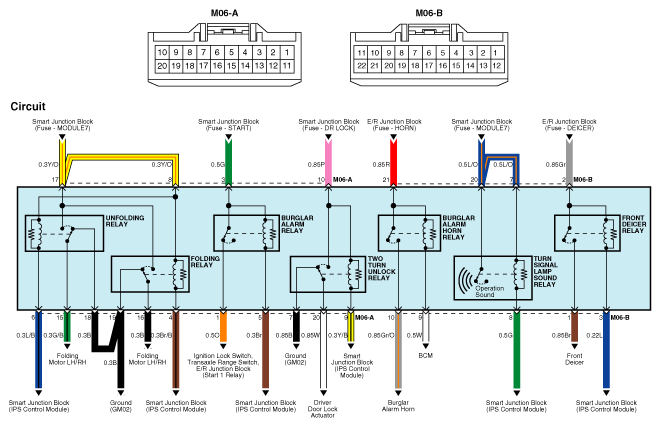

Courtesy of KIA MOTORS AMERICA, INC. RELAY BOX (PASSENGER COMPARTMENT) - ICM RELAY BOX RELAY IDENTIFICATION
| Relay Description |
| Unfolding Relay |
| Folding Relay |
| Burglar Alarm Relay |
| Two Turn Unlock Relay |
| Burglar Alarm Horn Relay |
| Turn Signal Lamp Sound Relay |
| Front Deicer Relay |
