Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
Disconnect the connectors (A) from the floor console assembly.

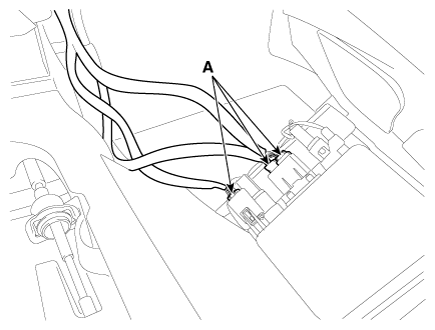

Fig 1: Locating Floor Console Assembly Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the multimedia bracket (A) after loosening the mounting screws (2EA).

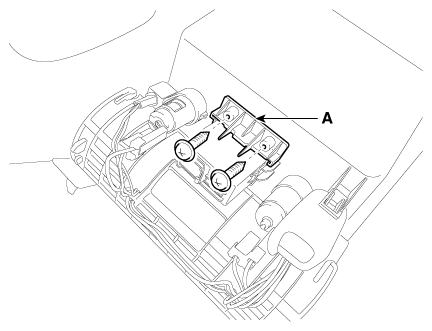

Fig 2: Remove Multimedia Bracket With Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the multimedia jack (A) after pushing the multimedia jack in the direction of the arrow.

Fig 3: Remove Multimedia Jack

Courtesy of KIA MOTORS AMERICA, INC.
