Repair Procedures: Inspection: Notes
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
- Check the battery voltage. (Low beam will be on when the battery voltage is above 9 V.)
- Check the fuse and relay.
- Check the polarity of ballast. (The low beam will not light on in reverse polarity.)
- Securely connect the bulb connector.

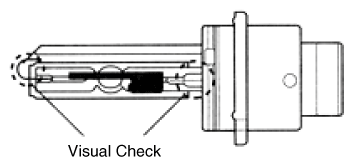

- Visual bulb check (no filament): Check for damaged glass or damaged upper and lower parts of glass tube.
- After (1) - (5), replace the ballast and the ignitor. (ballast assembly).
