Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the two mounting screws.
And then remove the overhead console (A).

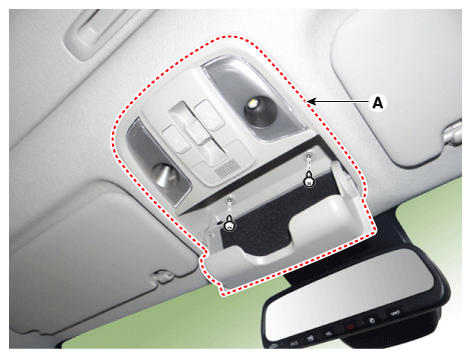

Fig 1: Locating Overhead Console
Courtesy of KIA MOTORS AMERICA, INC.
Remove the overhead console after disconnecting the connectors (A).

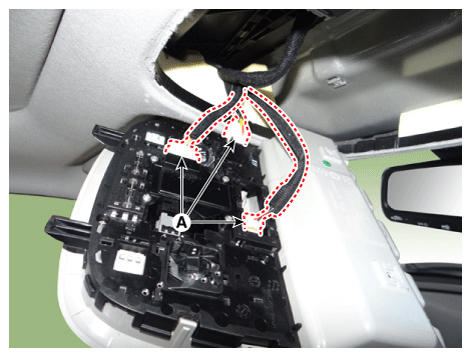

Fig 2: Locating Overhead Console Connectors
Courtesy of KIA MOTORS AMERICA, INC.
