PCB Block
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

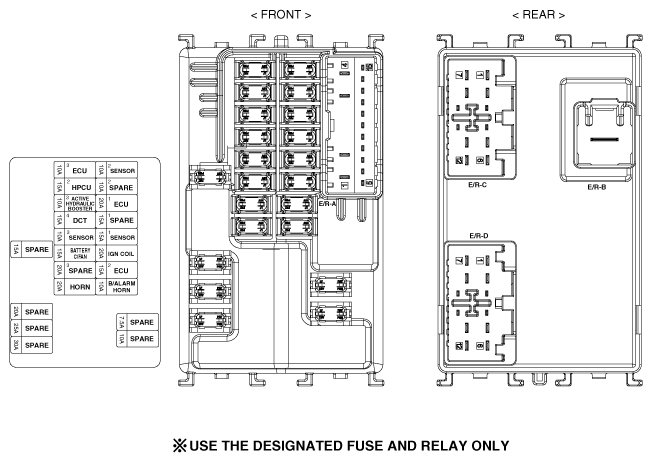

RELAY BOX (ENGINE COMPARTMENT) - PCB BLOCK FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected |
|---|---|---|
| ECU3 | 10A | ECM |
| HPCU2 | 15A | HPCU, Clutch Actuator (HEV) |
| ACTIVE HYDRAULIC BOOSTER 3 | 10A | Integrated Brake Actuation Unit, Multipurpose Check Connector |
| DCT4 | 15A | DCT Shift Lever, TCM Inhibitor Switch |
| SENSOR3 | 10A | E/R Junction Block (Fuel Pump Relay), Oil Control Valve #1/#2 (Intake/Exhaust), Camshaft Position Sensor #1/#2 (Intake/Exhaust) |
| BATTERY C/FAN | 15A | E/R Junction Block (Battery C/Fan Relay) |
| HORN | 20A | Horn Relay |
| SENSOR2 | 10A | Purge Control Solenoid Valve, E/R Junction Block (Cooling Fan Relay), Canister Close Valve, Mass Air Flow Sensor |
| ECU1 | 20A | ECM |
| SENSOR1 | 15A | Oxygen Sensor (Up), Oxygen Sensor (Down) |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| ECU2 | 15A | ECM |
| B/ALARM HORN | 10A | Burglar Alarm Horn Relay |
| * USE THE DESIGNATED FUSE AND RELAY ONLY | ||
