Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
The boot band should be replaced with a new one.

Remove the Front Driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

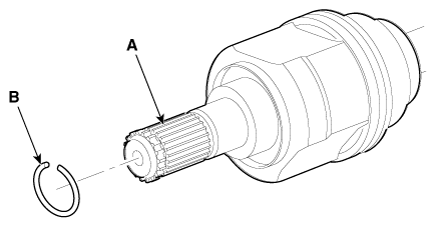

Remove the BJ circlip (B) from the TJ housing (A).

Fig 1: Removing BJ Circlip From TJ Housing
Courtesy of KIA MOTORS AMERICA, INC.
Remove both boot bands from the TJ housing.

Fig 2: Removing Both Boot Bands From TJ Housing (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Removing Both Boot Bands From TJ Housing (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

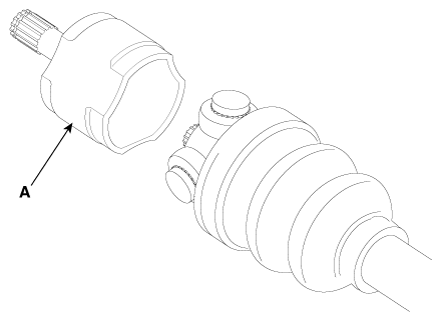

Remove the TJ circlip (A).

Fig 4: Removing TJ Circlip
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Make alignment marks (D) on spider roller assembly (A), TJ housing (B), and shaft spline (C) to aid reassembly.
Fig 5: Locating Alignment Marks On Spider Roller Assembly, TJ Housing And Shaft Spline
Courtesy of KIA MOTORS AMERICA, INC.
Remove the snap ring (A) from the shaft.

Fig 6: Removing Snap Ring From Shaft
Courtesy of KIA MOTORS AMERICA, INC.

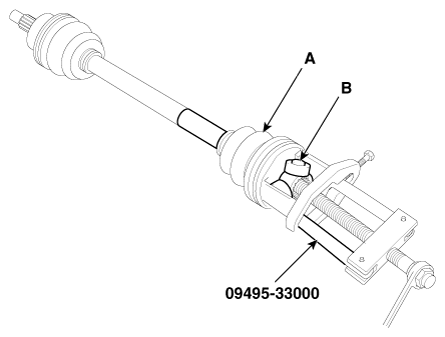

Remove the spider assembly (B) from the driveshaft (A) using the special tool (09495-33000).

Fig 7: Removing Spider Assembly From Driveshaft
Courtesy of KIA MOTORS AMERICA, INC.
Clean the spider assembly.

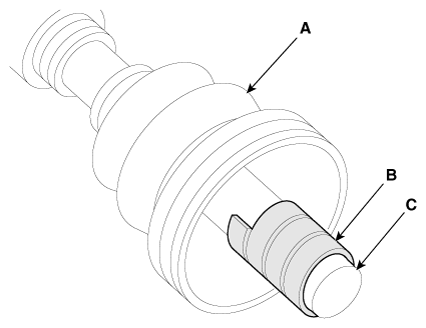

Remove the TJ boot (A).

CAUTION:

For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).

Fig 8: Wrapping Tape Around Driveshaft Splines

Courtesy of KIA MOTORS AMERICA, INC.
