Component Location

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

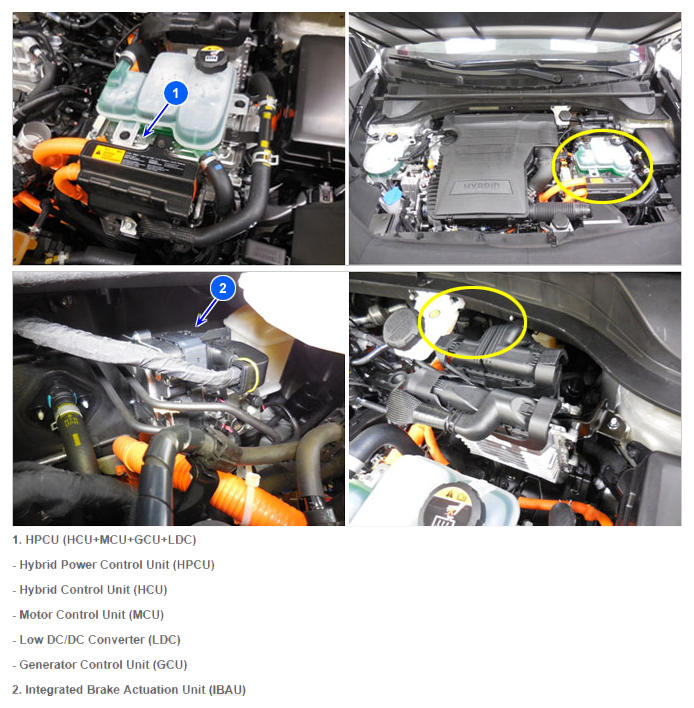

Fig 1: Locating (HPCU) Hybrid Powertrain Control Unit - (HCU+MCU+GCU+LDC) And IBAU Components
G12331128Courtesy of KIA MOTORS AMERICA, INC.
