Repair Procedures: Inspection: Notes

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the Lighting Switch of the Multi-Function Switch.
(Refer to REMOVAL )
With the front fog lamp switch, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch.

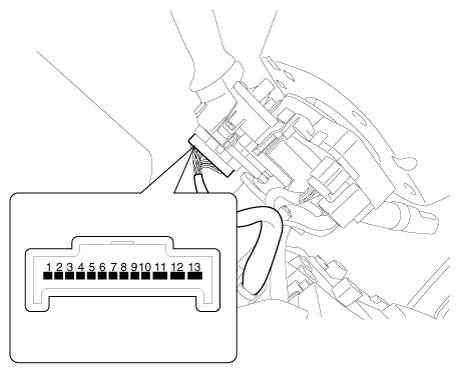

Fig 1: Front Fog Lamps Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
