Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Loosen 2 screws holding the overhead console (A).

Fig 1: Screws Holding Overhead Console
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) of sunroof switch and lamp switch then remove the overhead console lamp assembly.

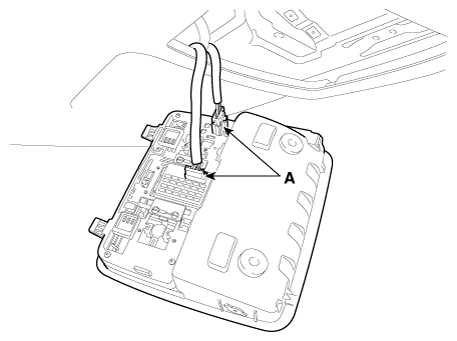

Fig 2: Connectors Of Sunroof Switch And Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.
If necessary to replace the bulb, replace the bulb after disconnecting the connectors.
