Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
The boot band should be replaced with a new one.

Remove the Front Driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

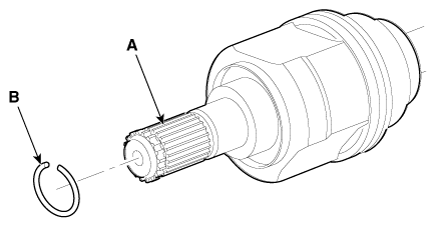

Remove the circlip (B) from the driveshaft spline (A).

Fig 1: Locating Circlip & Driveshaft Spline
Courtesy of KIA MOTORS AMERICA, INC.
Remove both boot bands from the TJ case.

Fig 2: Removing Both Boot Bands From TJ Case (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Removing Both Boot Bands From TJ Case (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

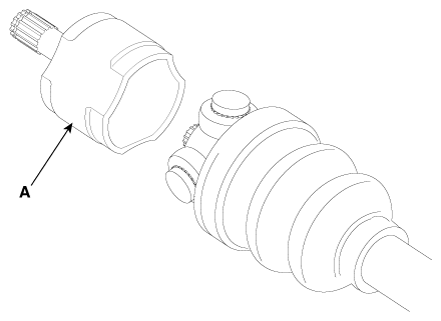

Remove the TJ case (A).

Fig 4: Locating TJ Case
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Make alignment marks on spider roller assembly (A), joint case (B), and shaft spline (C) to aid reassembly.
Fig 5: Locating Alignment Marks On Spider Roller Assembly, Joint Case & Shaft Spline
Courtesy of KIA MOTORS AMERICA, INC.
Remove the snap ring (A) from the shaft.

Fig 6: Locating Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.

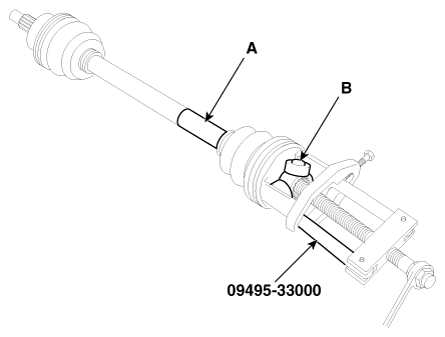

Remove the spider assembly (B) from the driveshaft (A) using the special tool (09495-33000).

Fig 7: Removing Spider Assembly From Driveshaft Using Special Tool (09495-33000)
Courtesy of KIA MOTORS AMERICA, INC.
Clean the spider assembly.
Remove the TJ boot (A).
CAUTION:

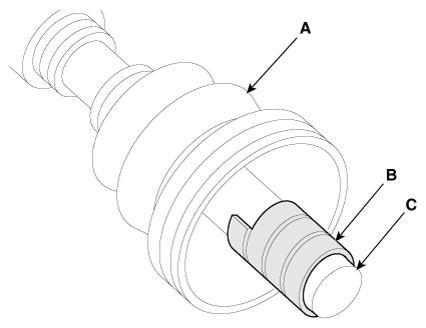

- For reusing the boot (A), wrap tape (B) around the driveshaft splines (C) to protect the boot (A).
Fig 8: Wrapping Tape Around Driveshaft Splines
Courtesy of KIA MOTORS AMERICA, INC.
