Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the evaporator temperature sensor connector (A).
  3. Remove the evaporator temperature sensor (B) by pulling it out after rotating it 90° in a counterclockwise direction.

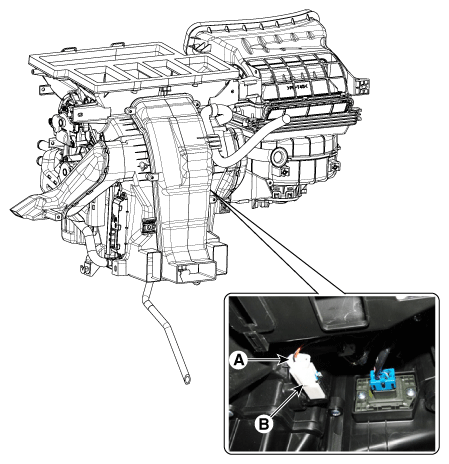

    Fig 1: Disconnecting Evaporator Temperature Sensor Connector
    G12166712Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
