CLU Variant Coding

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

After replacing the cluster with a new one, must be performed the "Variant Coding" procedure.

Connect the cable of KDS to the Data Link Connector in Driver Side Crash Pad Lower Panel, turn the power on KDS.
Select model and "BCM".
Select "Variant Coding" mode to perform.

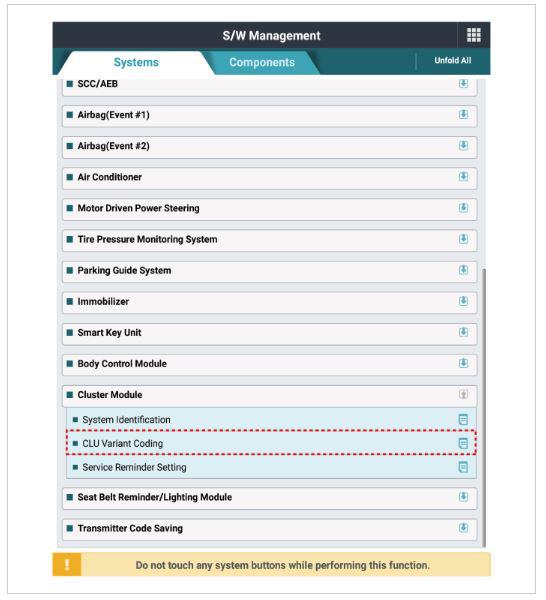

Fig 1: Screen Display - S/W Management - CLU Variant Coding (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

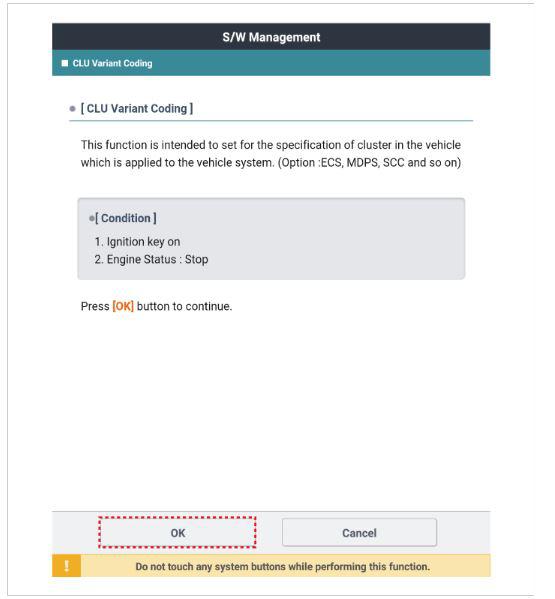

Fig 2: Screen Display - S/W Management - CLU Variant Coding (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

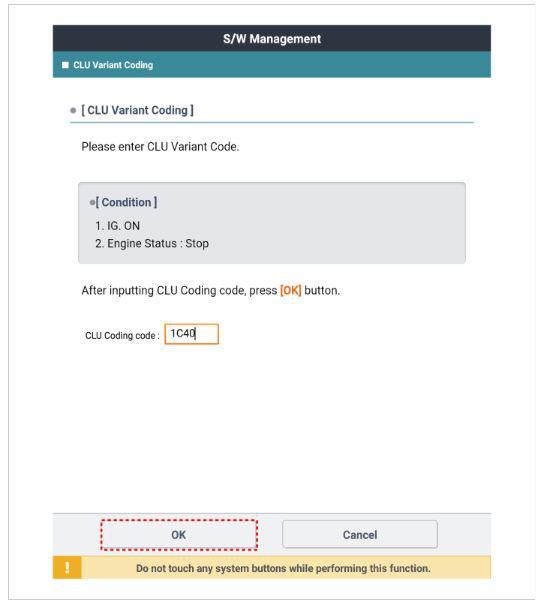

Fig 3: Screen Display - S/W Management - CLU Variant Coding (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
If the Trouble Codes occurred when performing Variant Coding, try the CLU Variant Coding again after checking the installation status of CLU System.

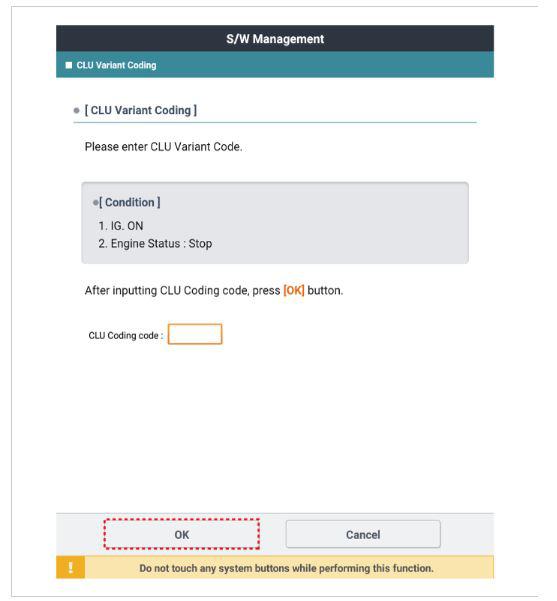

Fig 4: Screen Display - CLU Variant Coding - Installation Status (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

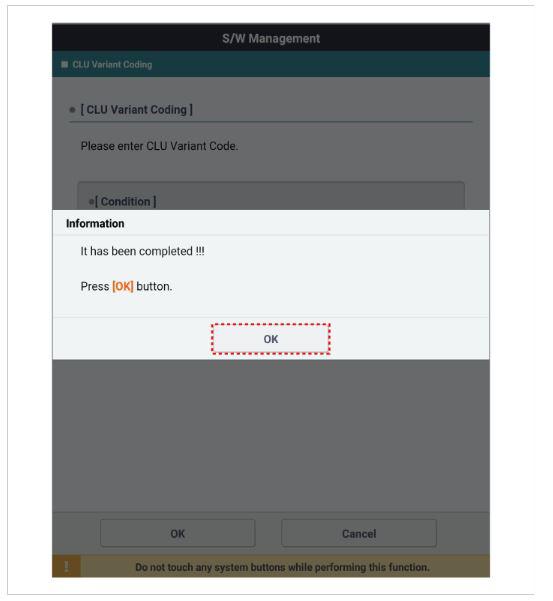

Fig 5: Screen Display - CLU Variant Coding - Installation Status (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

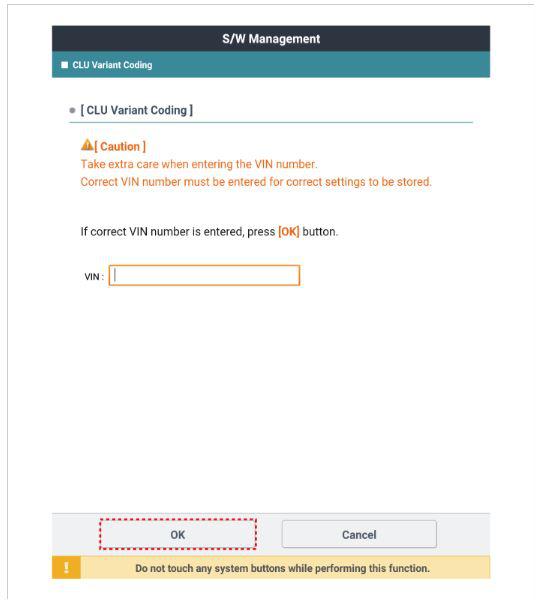

Fig 6: Screen Display - CLU Variant Coding - Installation Status (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

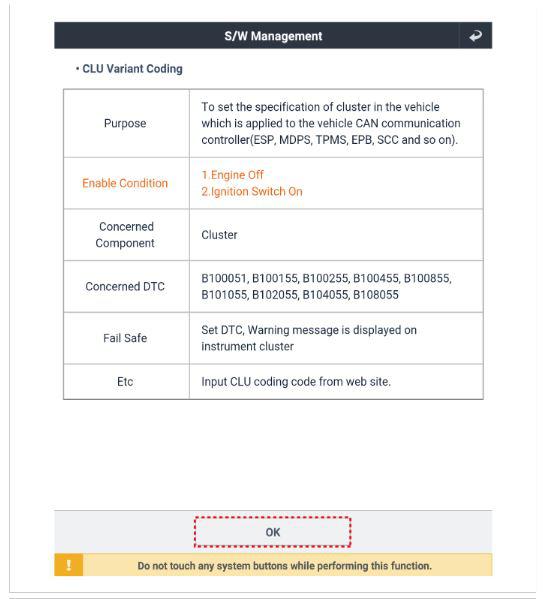

Fig 7: Screen Display - CLU Variant Coding - Installation Status (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
