Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater and blower assembly.

    (Refer to Heater - "HEATER UNIT ")

  3. Separate the blower unit from the heater unit after loosening the screws.

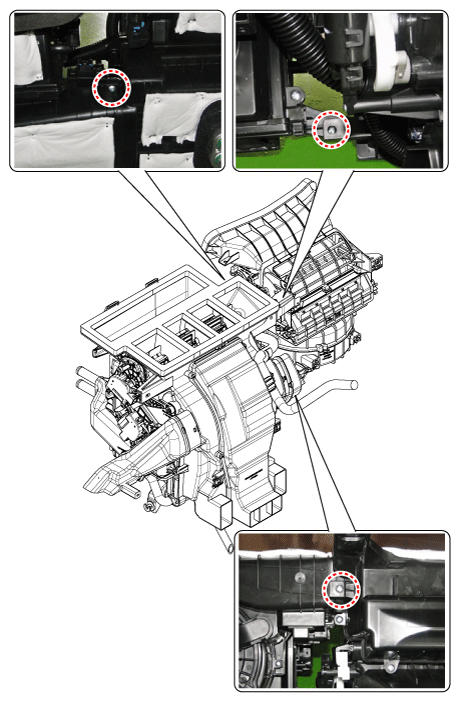

    Fig 1: Separating Blower Unit From Heater Unit Screws
    G12166764Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Make sure that there is no air leaking out of the blower and duct joints.
  4. Install in the reverse order of removal.
