Repair Procedures: Installation
WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Install the wiper motor.
- Install the crank arm.CAUTION: To install the wiper motor crank arm, make sure that the linkage is aligned with the crank arm in straight line and set the angle of each linkages exactly.
- Install the lower and upper linkage to the wiper motor crank arm.CAUTION: To install the wiper motor crank arm, make sure that the linkage is aligned with the crank arm in straight line and set the angle of each linkages exactly.
Be careful not to bend the linkage. - Install the wiper motor and linkage assembly and then connect the wiper motor connector.
Tightening torque:
7 - 11 N.m (0.7 - 1.1, kgf.m, 5.0 - 7.9 lb.ft)
- Install the cowl top cover.
- Install the windshield wiper arm and blade.
Tightening Torque:
22.5 - 26.4 N.m (2.3 - 2.7 kgf.m, 16.6 - 21.7 lb.ft)
NOTE:- The windshield wiper motor must be cycled to make sure that it is in the auto stop position.
If necessary, adjust the wiper arm and blade. - Install the wiper arm and blade to the auto stop position.

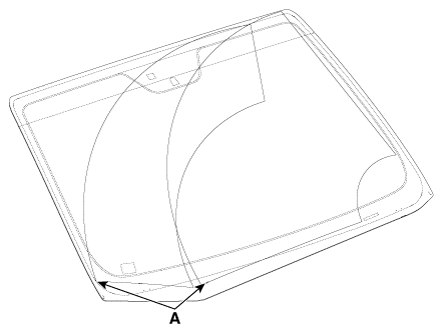

- Auto stop position (Blade)
