Rear Bumper Antenna

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the rear bumper cover.
(Refer to Body - "REAR BUMPER COVER ")
Disconnect the rear bumper antenna connector (A).

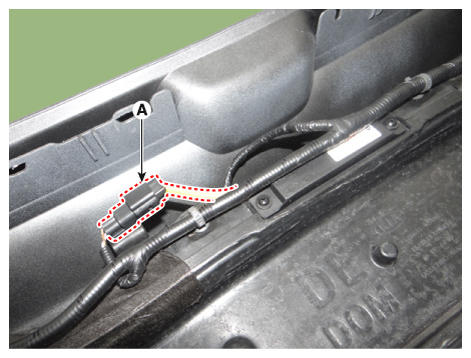

Fig 1: Locating Rear Bumper Antenna Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear bumper antenna (A) after loosening the mounting screws.

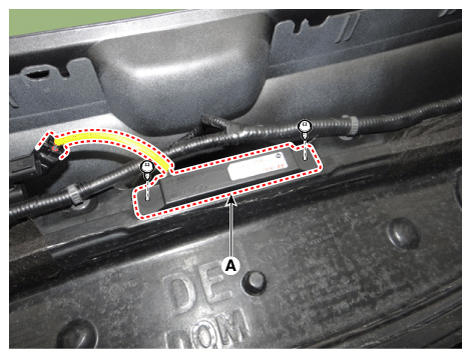

Fig 2: Removing Rear Bumper Antenna Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
