Repair Procedures: Inspection: Keypads

The Micro 570 buttons on the keypad provide the following functions:

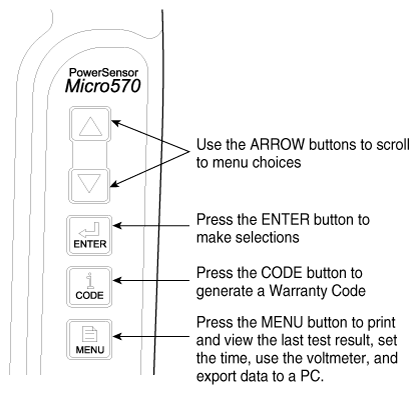

Fig 1: Micro 570 Buttons
G12161151Courtesy of KIA MOTORS AMERICA, INC.
