System Inspection

■ Resetting Adaptive Values

1. Connect GDS to DLC (Data Link Cable).
2. IG "ON" & ENG "OFF"
3. Select the "Vehicle S/W Management  " about related DTC with GDS.

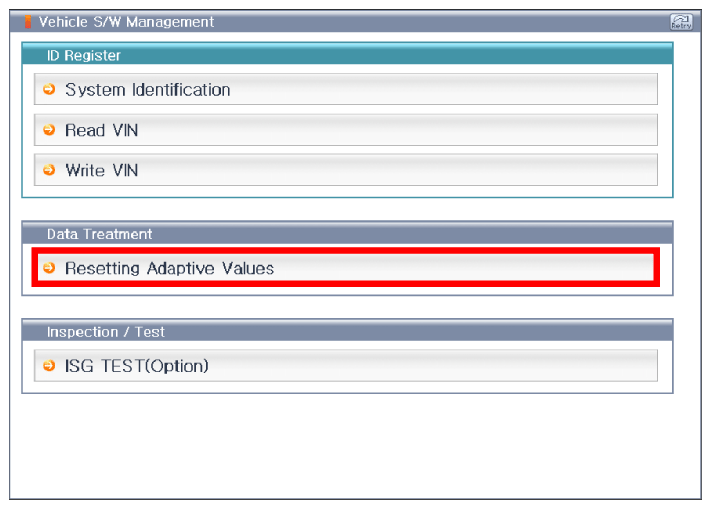

   Fig 1: Scantool Display - Vehicle S/W Management

   Courtesy of KIA MOTORS AMERICA, INC.

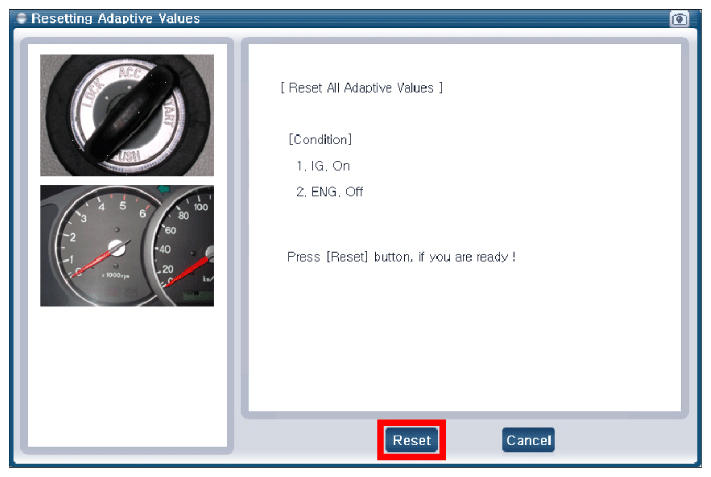

   Fig 2: Scantool Display - Reset All Adaptive Values

   Courtesy of KIA MOTORS AMERICA, INC.

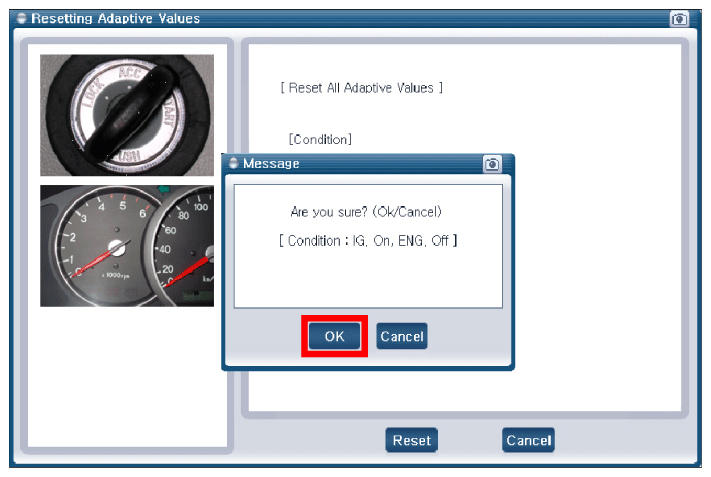

   Fig 3: Scantool Display - Reset All Adaptive Values (Message)

   Courtesy of KIA MOTORS AMERICA, INC.

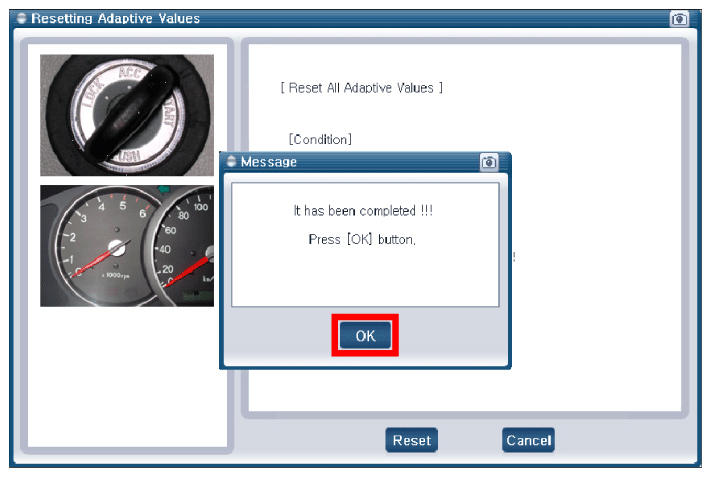

   Fig 4: Scantool Display - Reset All Adaptive Values (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
4. Has the problem been corrected?

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Substitute with a known-good ECM and check for proper operation. If the problem is corrected, replace ECM and then go to "Verification of Vehicle Repair " procedure.
