Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

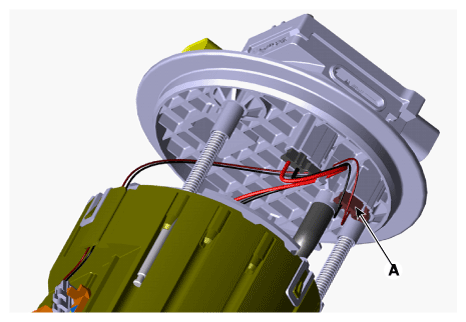

  2. Disconnect the fuel sender connector (A).
    Fig 1: Disconnecting Fuel Sender Connector
    G12335936Courtesy of KIA MOTORS AMERICA, INC.

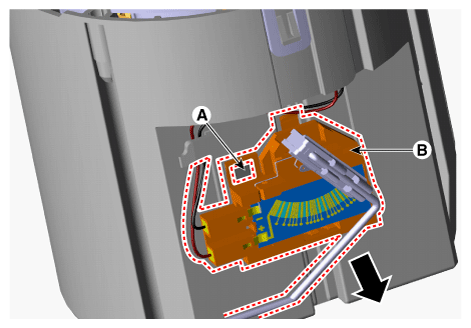

  3. Lift the fixing hook (A) by using a common driver, and then remove the fuel sender (B).
Fig 2: Removing Fuel Sender
G12335937Courtesy of KIA MOTORS AMERICA, INC.
