Kia
>>
2017
>>
Niro EX
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Dual Clutch Transmission Control System
>>
Gear Actuator Assembly
>>
Schematic Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagrams

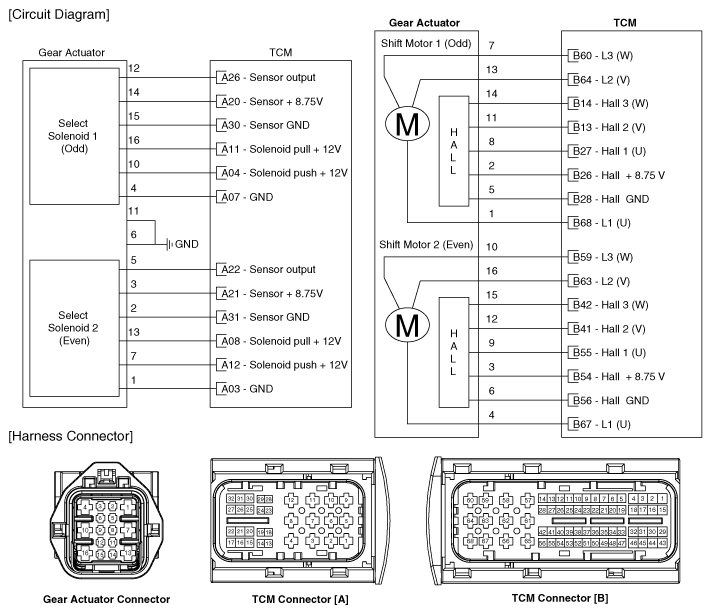

Fig 1: Gear Actuator Shift Motor Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
