Schematic Diagrams

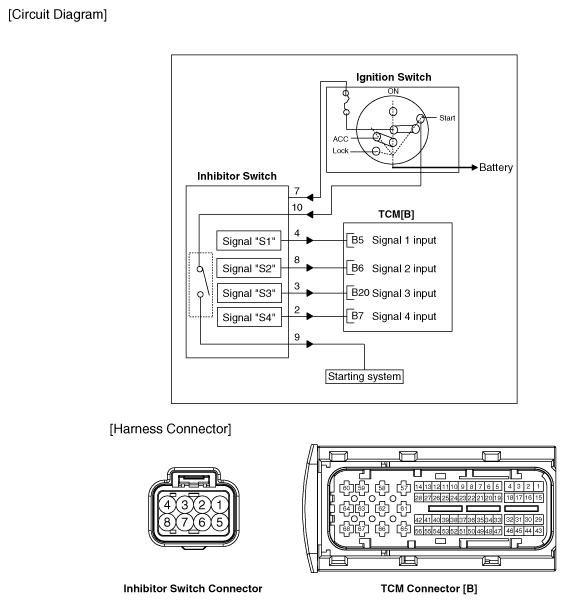

Fig 1: Inhibitor Switch Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
