Optima Hybrid, 2.0L Eng VIN C
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (HEV)
>>
Electric EGR Control Valve
>>
Troubleshooting
>>
Signal Waveform
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform

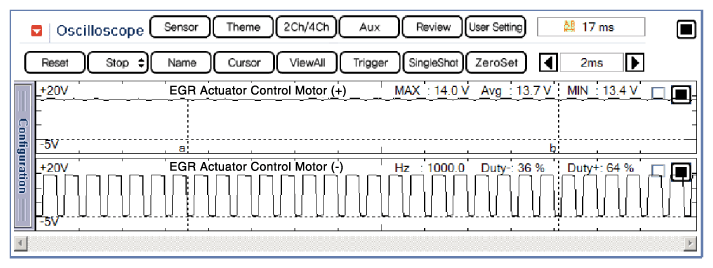

Fig 1: Screen Display - Duty Control, EEGR Motor (-) At Deceleration Or Idle
Courtesy of KIA MOTORS AMERICA, INC.

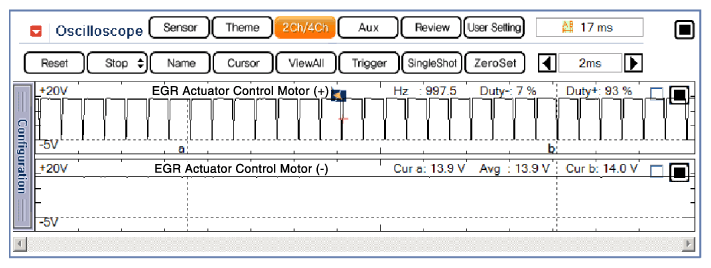

Fig 2: Screen Display - Duty Control, EEGR Motor (+) At Acceleration
Courtesy of KIA MOTORS AMERICA, INC.
