Circuit Diagram

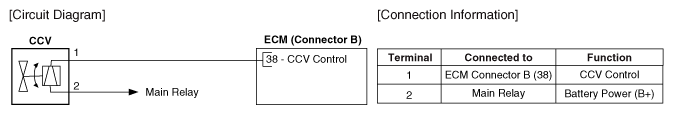

Fig 1: Canister Close Valve Circuit
G12146949Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

Fig 2: Canister Close Valve Connector Terminals
G12146950Courtesy of KIA MOTORS AMERICA, INC.
