Repair Procedures: Removal

1. Disconnect the negative (-) battery terminal.

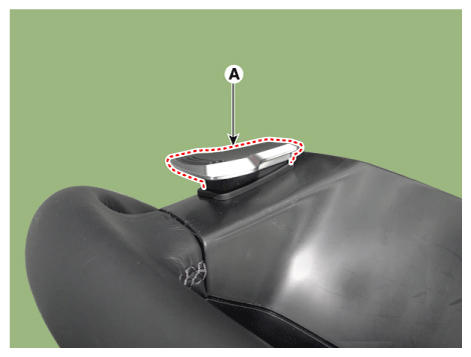

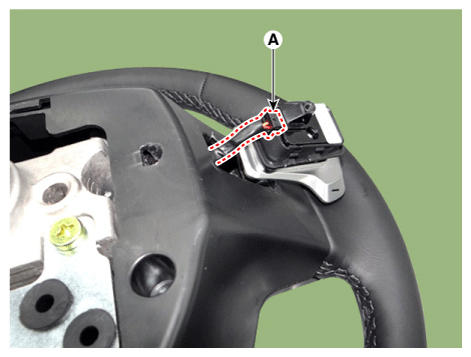

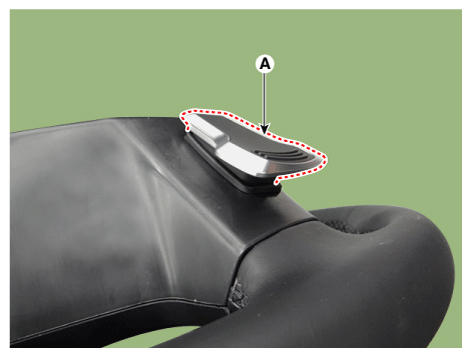

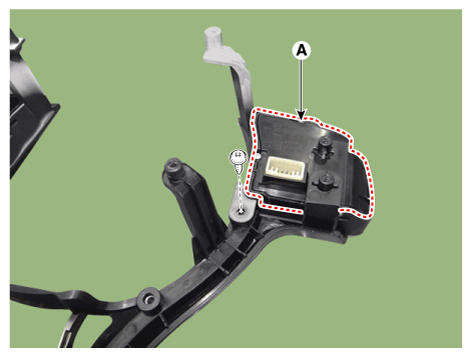

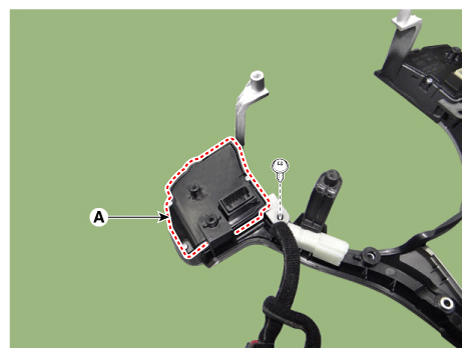

2. Remove the steering wheel assembly.

   (Refer to Steering System - "STEERING WHEEL ")

3. Remove the paddle shift switch (A) after loosening the mounting screws.

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

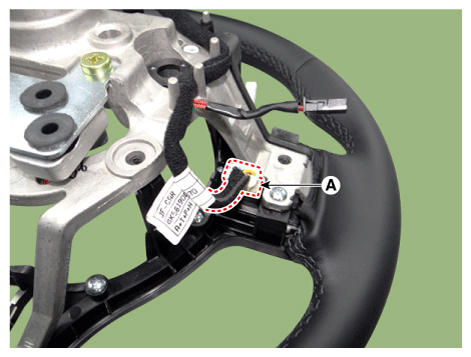

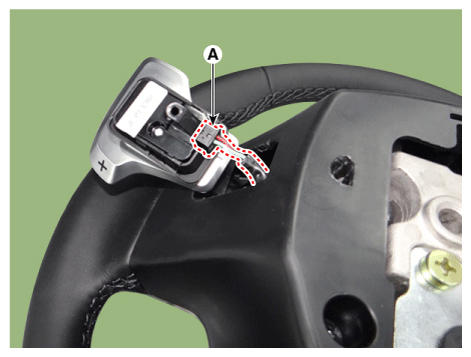

4. Disconnect the paddle shift switch connector (A).

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

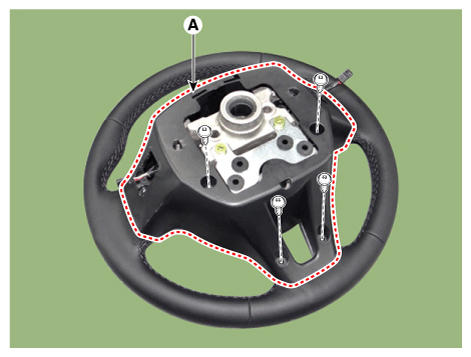

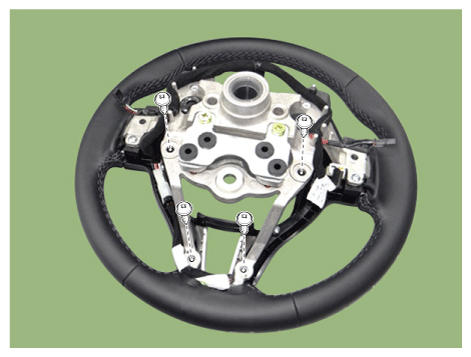

5. Remove the screws from the steering back cover (A).

   Courtesy of KIA MOTORS AMERICA, INC.

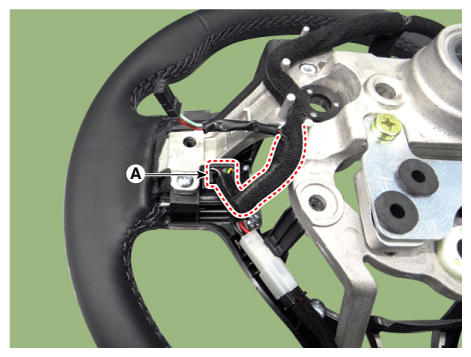

6. Disconnect the steering remote control connector (A).

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

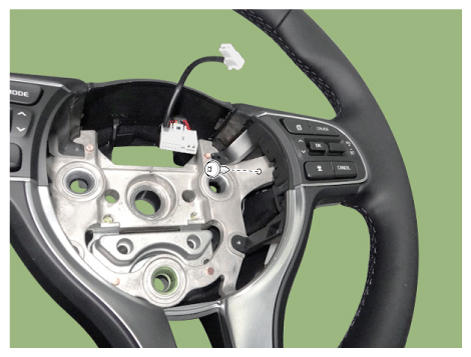

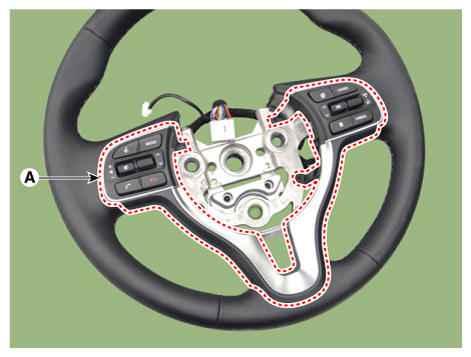

7. Remove the steering remote control assembly (A) after loosening the mounting screws.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

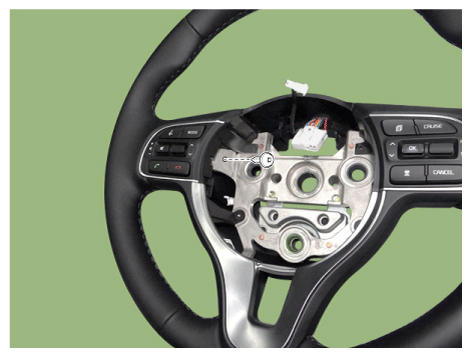

8. Remove the steering remote control (A) after loosening the mounting screws.

   [LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
