FOB Status Check

  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
  2. After ignition "ON", select the "FOB KEY STATUS INFO".

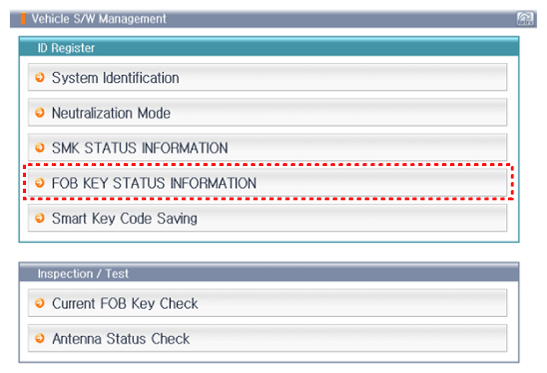

G12351914Courtesy of KIA MOTORS AMERICA, INC.

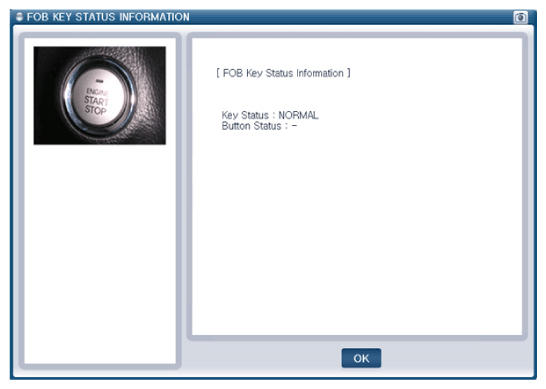

G12351915Courtesy of KIA MOTORS AMERICA, INC.
