Repair Procedures: Disassembly

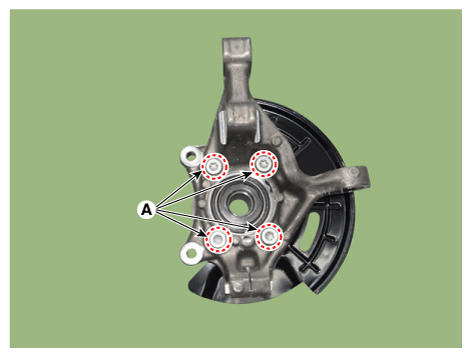

  1. Remove the hub assembly mounting bolts (A) from the knuckle.

    Tightening Torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G12349691Courtesy of KIA MOTORS AMERICA, INC.

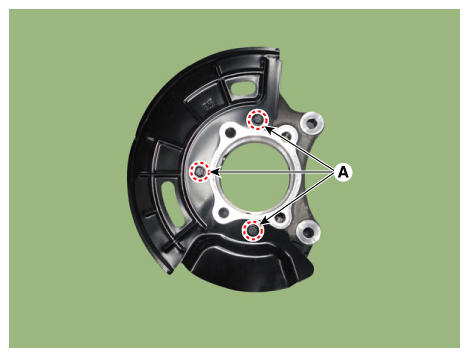

  2. Remove the bolts (A) from the knuckle.
    G12349692Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
