Components And Components Location: Components

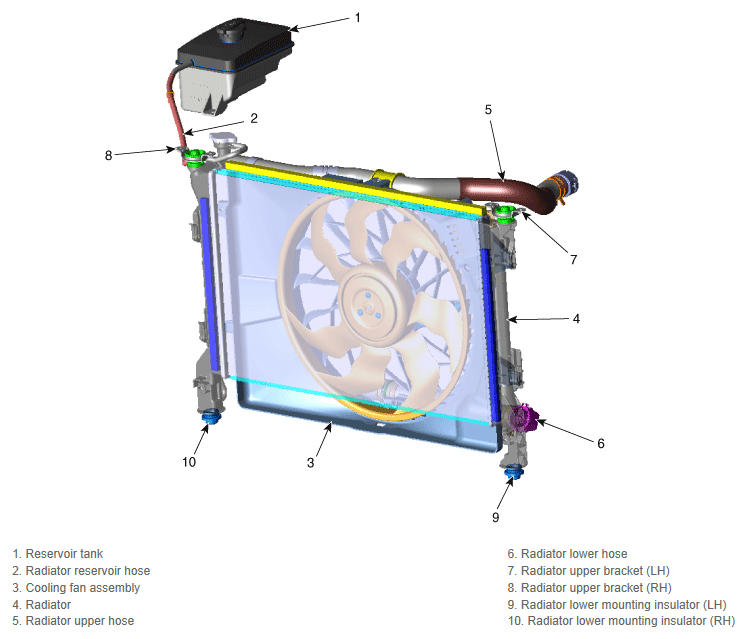

G12352679Courtesy of KIA MOTORS AMERICA, INC.

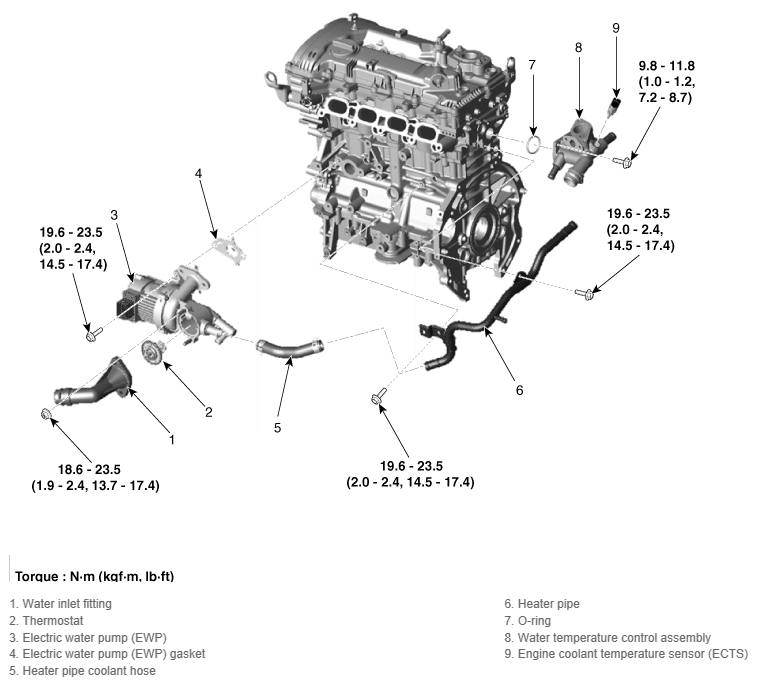

Fig 1: Cooling System Components With Torque Specification
G12352680Courtesy of KIA MOTORS AMERICA, INC.
