Circuit Diagram (2)

WARNING: This page is about a different variant/trim than selected.

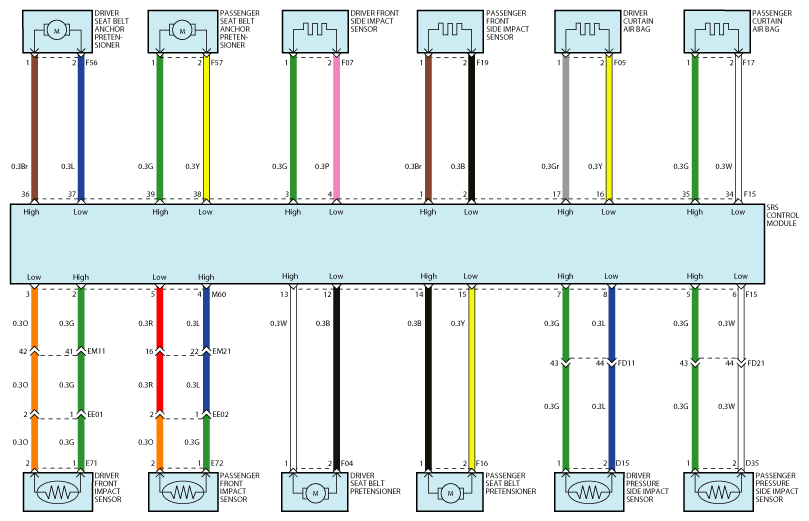

Fig 1: SRS Control Module Circuit (2)
G12141998Courtesy of KIA MOTORS AMERICA, INC.
