Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

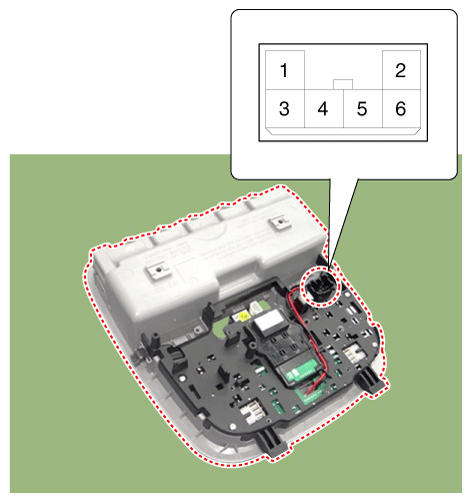

Fig 1: Overhead Console Lamp Assembly Connector Terminals
G12143391Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Overhead Console Lamp Assembly Connector Terminals Continuity Chart
G12143392Courtesy of KIA MOTORS AMERICA, INC.
