Repair Procedures: Removal: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Put on gloves to prevent hand injuries.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

Disconnect the negative (-) battery terminal.
Using a screwdriver or remover, separate the room lamp lens (A) from the room lamp.

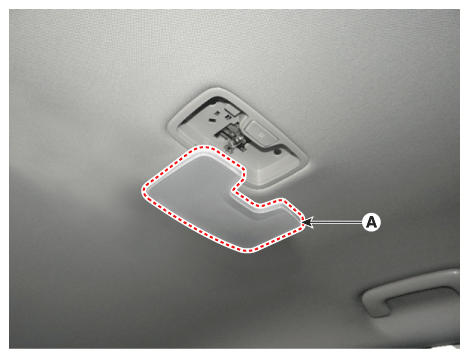

Fig 1: Separating Room Lamp Lens From Room Lamp
Courtesy of KIA MOTORS AMERICA, INC.
Remove the room lamp (A) after loosening the screws.

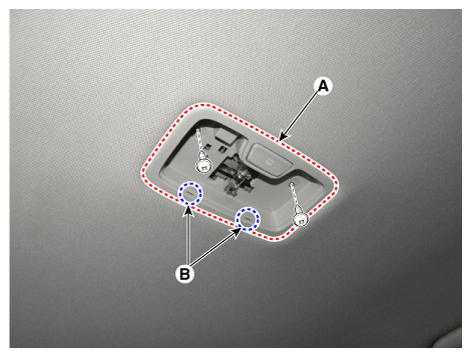

Fig 2: Removing Room Lamp Screws
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When removing the room lamp, be careful of the direction in which the tool is inserted (B).
- When inserting the tool in the opposite direction, take caution as the room lamp may be damaged.
Remove the room lamp assembly after disconnecting the room lamp connector (A).

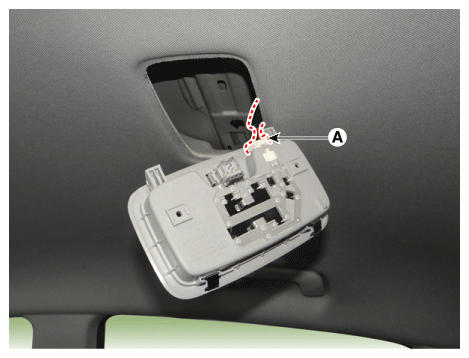

Fig 3: Disconnecting Room Lamp Connector

Courtesy of KIA MOTORS AMERICA, INC.
