Repair Procedures: Removal: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.

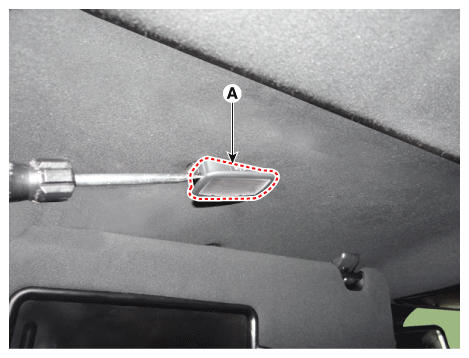

Detach the vanity lamp (A) using a flat-tip screwdriver.

Fig 1: Detaching Vanity Lamp Using Flat-Tip Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.

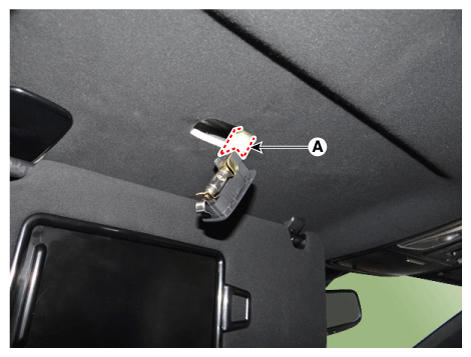

Disconnect the vanity lamp connector (A).

Fig 2: Disconnecting Vanity Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.
