Repair Procedures: Inspection

Check installation status of BBVPS and Vacuum hose or damage of vacuum hose.
Connect GDS to DLC (Data Link Cable).
Warm up the engine to normal operating temperature.
Monitor "BBVPS" parameter on GDS.

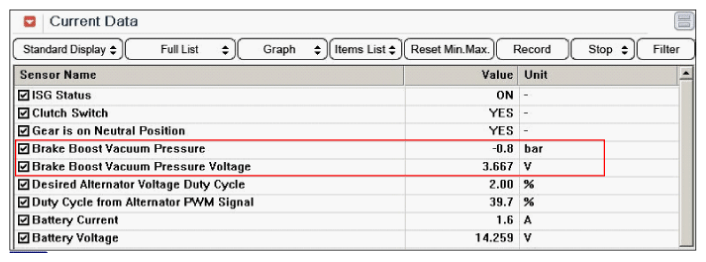

Fig 1: Screen Display - Idle Status

Courtesy of KIA MOTORS AMERICA, INC.

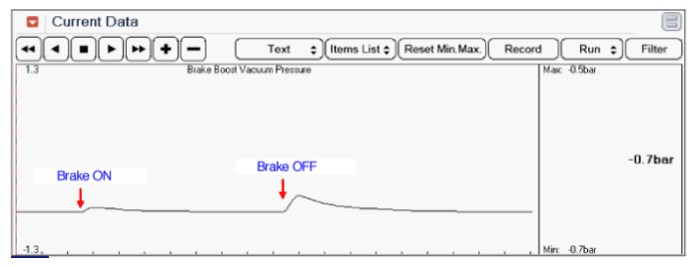

Fig 2: Screen Display - Brake Pressure Signal

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: With a brake partial vacuum that is too low, the ISG function also starts without activity on the part of the driver.
Insufficient brake partial vacuum can lead to safety risks during braking maneuvers, when rolling on an incline. To prevent this, the Engine is started.
(Refer to "DTC P0557 , P0558 ")
