Components And Components Location: Components

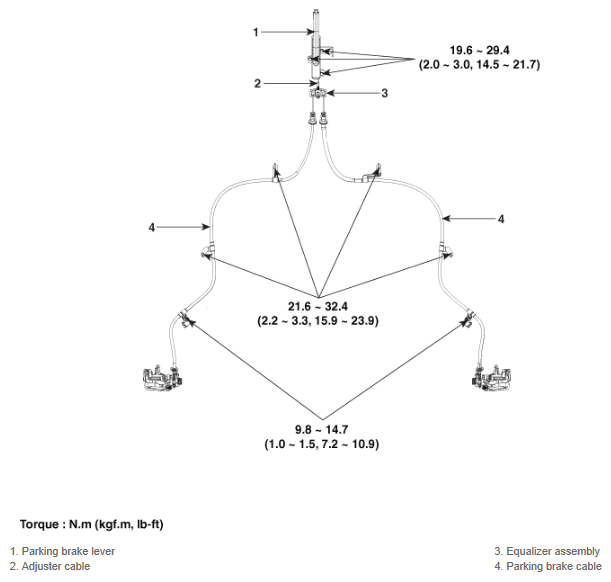

Fig 1: Locating Parking Brake Assembly Components With Torque Specification
G11846043Courtesy of KIA MOTORS AMERICA, INC.
