Input Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Diagram

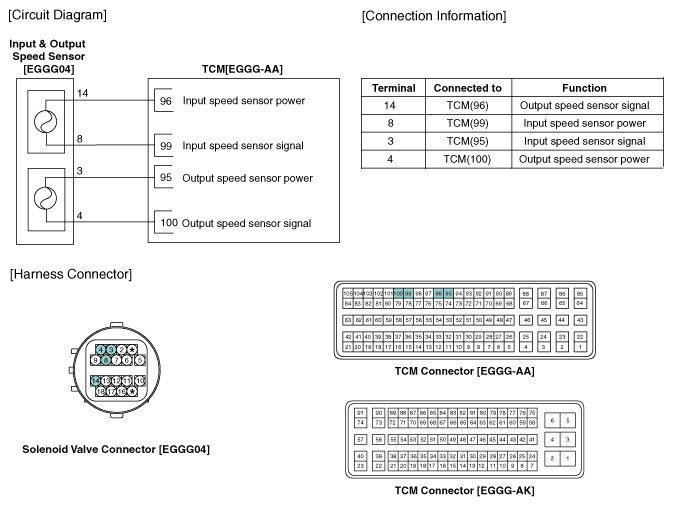

Fig 1: Input Speed Sensor Circuit
Courtesy of KIA MOTORS AMERICA, INC.
