Components And Components Location: Components

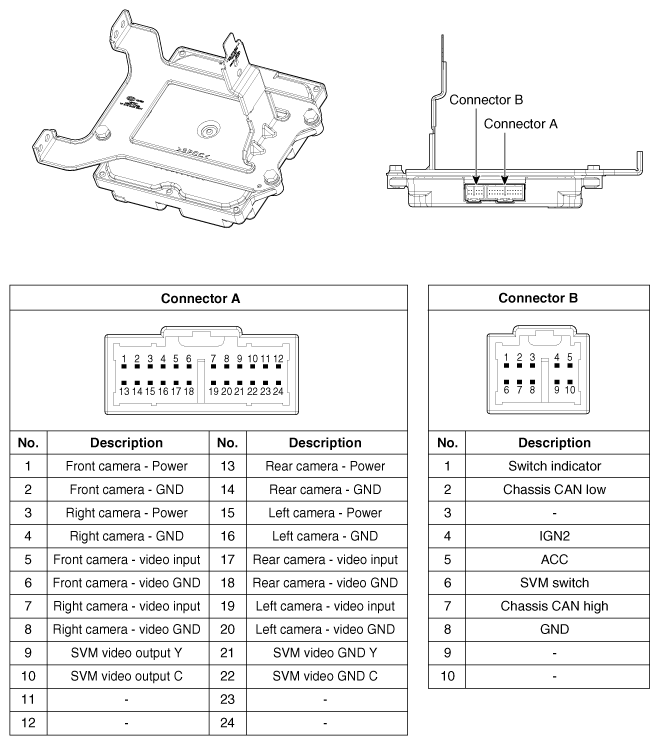

Fig 1: Surround View Monitoring Unit Connector Terminals And Connector End View
G12272585Courtesy of KIA MOTORS AMERICA, INC.
