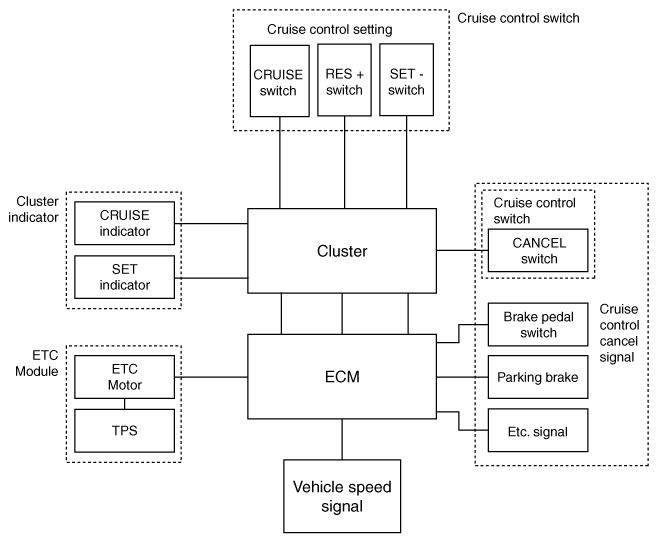

System Block Diagram
* ETC Motor: Electronic Throttle Control Motor
COMPONENT PARTS AND FUNCTIONS OUTLINE
| Component part | Function | |
|---|---|---|
| Vehicle-speed sensor, ESP/ABS Control Module | Converts vehicle speed to pulse. | |
| ECM | Receives signals from sensor and control switches. | |
| Cruise control indicator | Illuminates when CRUISE main switch is ON (Built into cluster). | |
| Cruise control switches | CRUISE switch | Switches on and off automatic speed control power supply. |
| Resume/Accel switch (RES +) | Controls automatic speed control functions by Resume/Accel switch Set/Coast switch (RES -) | |
| (Set/Coast switch). | ||
| Cancel switches | Cancel switch | Sends cancel signals to ECM. |
| Brake-pedal switch | ||
| Transaxle range switch (A/T) | ||
| ETC Motor | Regulates the throttle valve to the set opening by ECM. | |
