Antenna Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

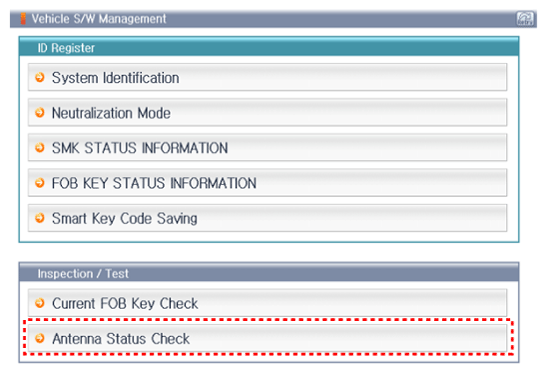

Fig 1: Screen Display - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
After IG ON, select the "Antenna Status Check".

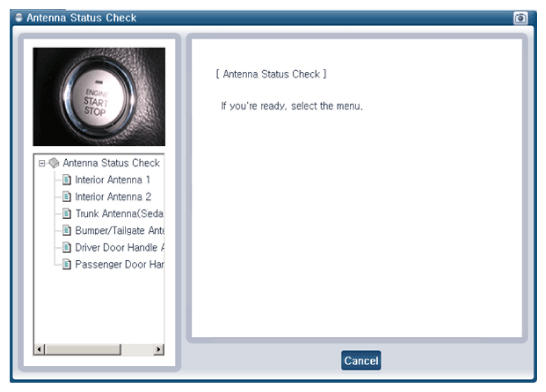

Fig 2: Screen Display - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the corresponding antenna and operate it using GDS.

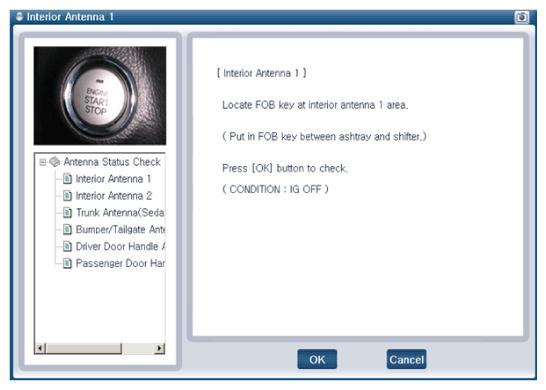

Fig 3: Screen Display - Interior Antenna (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - Interior Antenna (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key operates normally, it means that the corresponding antenna, smart key (transmission & reception) and exterior receiver are also normal.
Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- INTERIOR Antenna 3
- BUMPER/Trunk Antenna
- DRV_DR Antenna
- AST_DR Antenna
