LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Kia
>>
2017
>>
Soul Base, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Cruise Control System
>>
Cruise Control Switch
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

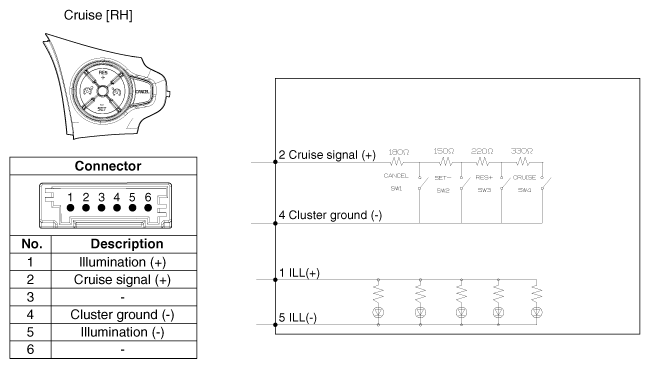

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
