Component Inspection

IG Key "OFF".
Disconnect HECU connector.
Measure resistance between Pin No. 1 (Power) terminal and Pin No. 2 (Signal) terminal of the Front LH Wheel Speed Sensor. (Component Side)
Specification: Approx. 467.9 kΩ

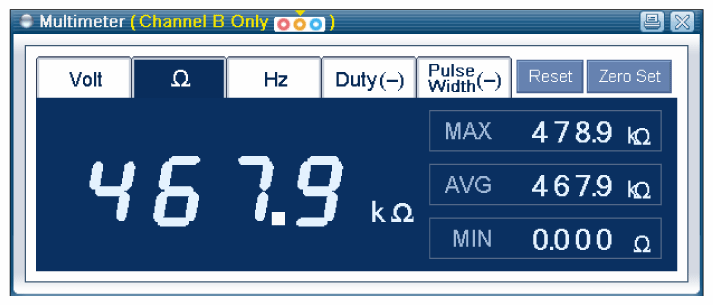

Fig 1: Scantool Display - Resistance Of Front LH Wheel Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Is the resistance of front LH wheel speed sensor similar as shown above?
YES
- Go to "Verification Of Vehicle Repair " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace wheel speed sensor and then go to "Verification Of Vehicle Repair " procedure.
