Components And Components Location: Components

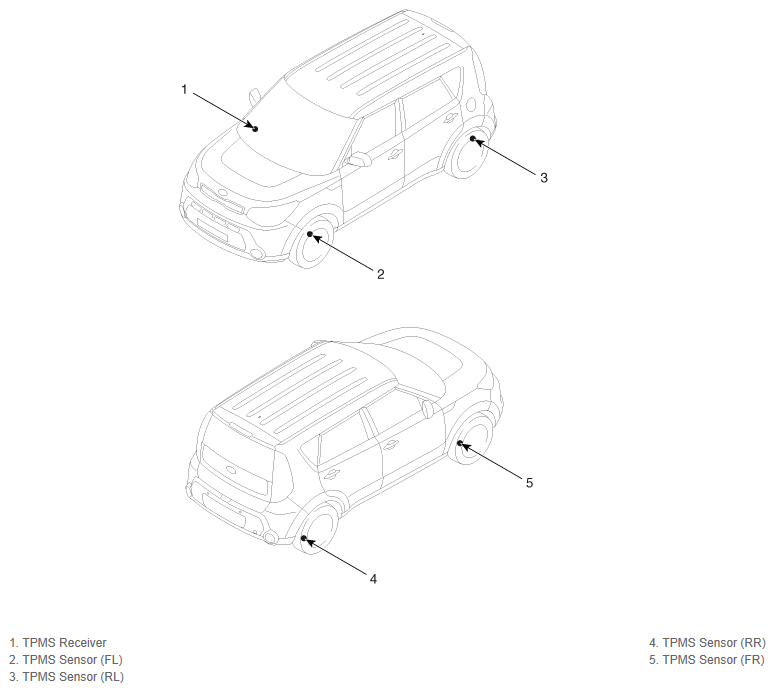

Fig 1: Tire Pressure Monitoring System Components Location
G12229318Courtesy of KIA MOTORS AMERICA, INC.
