Repair Procedures: Removal

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool to prevent damaging the surface.

Disconnect the negative (-) battery terminal.
Remove the rear back armrest.
(Refer to Body - "REAR BACK ARMREST ")
Remove the rear back armrest cover (A) after loosening the screws.

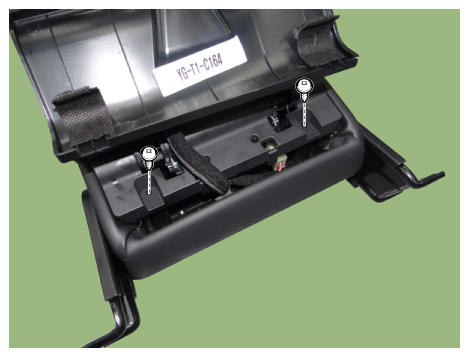

Fig 1: Rear Back Armrest Cover With Screws
Courtesy of KIA MOTORS AMERICA, INC.

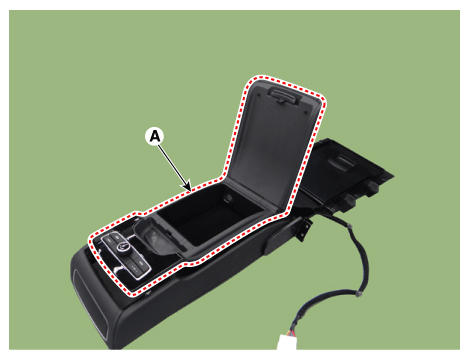

Fig 2: Locating Rear Back Armrest Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the rear keyboard unit connector (A).

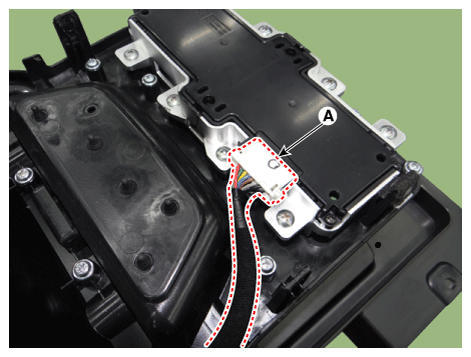

Fig 3: Locating Rear Keyboard Unit Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear keyboard unit (A) after loosening the screws.

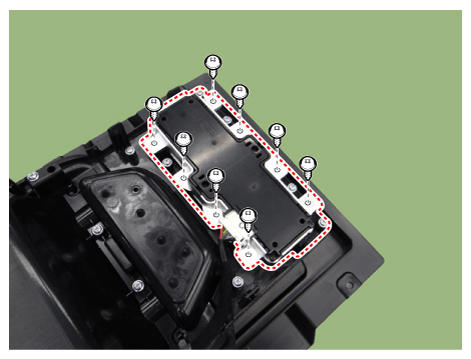

Fig 4: Locating Rear Keyboard Unit With Screws
Courtesy of KIA MOTORS AMERICA, INC.

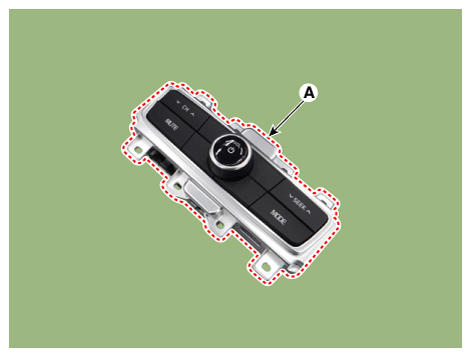

Fig 5: Identifying Rear Keyboard Unit
Courtesy of KIA MOTORS AMERICA, INC.
