Battery Tray

Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
Remove the battery tray (A) after loosening the mounting bolts
Battery tray mounting bolt :

19.6 - 29.4 N.m (1.9 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

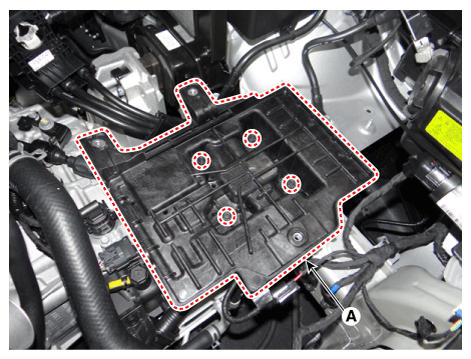

Fig 1: Removing Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.
