Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.

Disconnect the negative (-) battery terminal.
Remove the Center Fascia Upper Panel.
(Refer to Body - "CENTER FASCIA PANEL ")

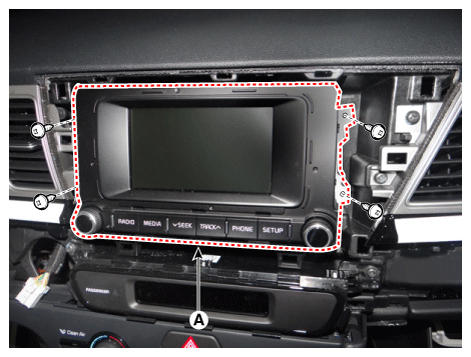

Remove the audio head unit (A) after loosening the screws.

Fig 1: Locating Audio Head Unit
Courtesy of KIA MOTORS AMERICA, INC.

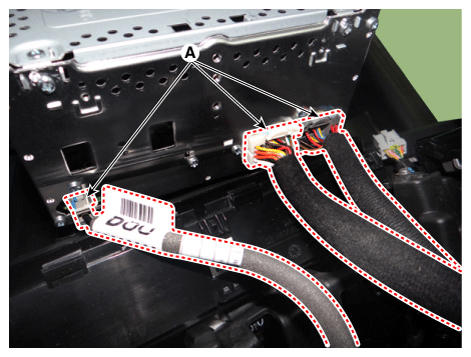

Remove the audio head unit after disconnecting the connectors and antenna cable (A).

Fig 2: Locating Antenna Cable
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When the compact disc is stuck, do not remove with force.
