Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF and disconnect the negative (-) battery terminal.
Remove the fuse box cover.
Remove the starter relay (A).

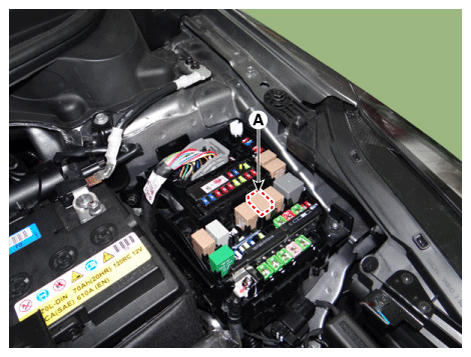

Fig 1: Locating Starter Relay
Courtesy of KIA MOTORS AMERICA, INC.

Check for continuity between the terminals (30 and 87) using an ohmmeter.

Terminal	Resistance	Measure
30 - 87	1MΩ or higher	If there is continuity between the terminals, replace the relay.

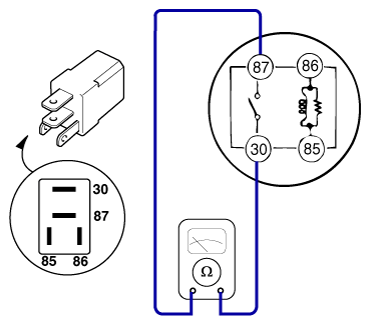

Fig 2: Checking For Continuity Between Terminals (30 And 87) Using Ohmmeter

Courtesy of KIA MOTORS AMERICA, INC.

Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).

Terminal	Resistance	Measure
30 - 87	1Ω or less	If there is no continuity between the terminals, replace the relay.

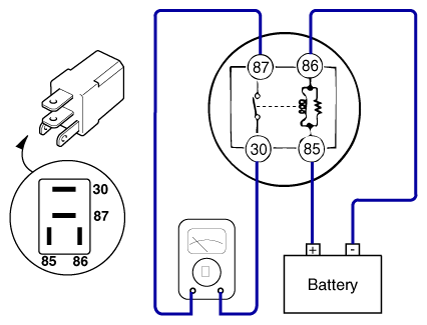

Fig 3: Checking For Continuity Between Terminals (30 And 87)

Courtesy of KIA MOTORS AMERICA, INC.
