Check The Power Source Circuit

  1. Disconnect the connector from the ESC Control Module.
  2. Turn the ignition switch ON, measure the voltage between terminal 32 of the ESC control module harness side connector and body ground.

    Specification  : approximately B+

    Is the voltage within specification?

    YES

    • Check the ground circuit.

    NO

    • Check the Harness or Connector between the Fuse (10A) in the Engine compartment Junction Block and the ESC Control Module. Repair if necessary.

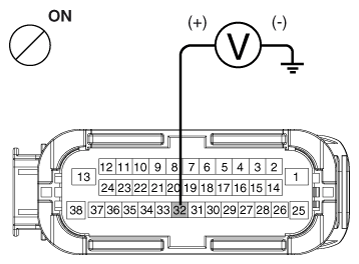

    Fig 1: Measuring Voltage Between Terminal 32 Of ESC Control Module Harness Side Connector And Body Ground
    G12163874Courtesy of KIA MOTORS AMERICA, INC.
